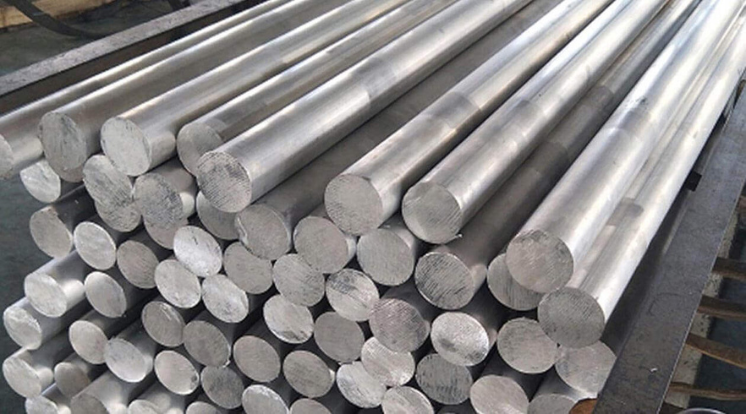

Aluminium 1100 Round Bar

Aluminium 1100 Round Bar is a commercially pure aluminium alloy containing a minimum of 99.70% aluminium, known for its excellent corrosion resistance, exceptional ductility, and outstanding electrical and thermal conductivity. It is widely supplied by leading Stockist and Suppliers in various diameters, lengths, and custom specifications to meet diverse industrial and engineering requirements. This alloy offers a smooth and uniform surface finish, available in mill finish, polished, and anodized conditions. Aluminium 1100 Round Bar is lightweight, non-magnetic, and highly resistant to atmospheric and chemical corrosion, ensuring long-term durability even in demanding environments. Aluminium 1100 Round Bar is extensively used in electrical conductors, bus bars, transformer windings, heat exchangers, chemical equipment, food processing units, architectural structures, and precision engineering applications. It provides excellent workability, allowing easy machining, forming, bending, and welding without cracking. Although it has relatively lower mechanical strength compared to alloyed aluminium grades, its superior corrosion resistance, very high electrical conductivity, and excellent formability make Aluminium 1100 Round Bar an ideal choice for applications where conductivity, corrosion resistance, and reliable long-term performance are more critical than high strength.

Aluminium 1100 Round Bar Specifications

Standards : ASTM B221, ASTM B211, ASTM B565
Temper : O, H12, H14, H16, H18, H24
Length : 1000 mm – 6000 mm
Diameter : 3 mm to 150 mm (Custom sizes available up to 500 mm on request)
Finish :Mill Finish, Bright Finish, Polished, Anodized
Type : Hot-Rolled (HR) / Cold-Drawn (CD) Round Bar

KEY FEATURES

High ductility, excellent corrosion resistance, good electrical conductivity, reflective surface, easy to form, suitable for deep drawing, food-safe aluminium.

PRODUCT RANGE

1100 round bar, hot rolled 1100 round bar, cold rolled 1100 round bar, anodized 1100 round bar, mirror finish 1100 round bar, polished 1100 round bar, brushed 1100 round bar, embossed 1100 round bar, coated 1100 round bar.

GLOBAL EQUIVALENTS

AA1100 (USA), ASTM B209 1100, ASME SB209 1100, UNS A91100, EN AW-1100, EN 573-3, EN 485-2/4 (Europe), ISO Al99.0 (International Standard), DIN 3.0305, DIN Al99.0, Werkstoff 3.0305 (Germany), BS 1100A (British Standard), AFNOR A02 004 (France), UNI 1100 (Italy), GOST 4784 AD0 (Russia), GB/T 3190 1100, LF1, LD1 (China), JIS H4000 A1100, JIS A1100P (Japan), KS D4201 1100 (Korea), TSE EN 1100 (Turkey), SANS EN 1100 (South Africa), Mexico follows AA/ASTM 1100, India follows AA/EN 1100, GCC (UAE, Saudi, Qatar, Oman, Kuwait, Bahrain) uses ASTM/EN 1100.

TEMPER LIST

1100-O, 1100-H12, 1100-H14, 1100-H16, 1100-H18, 1100-H19, 1100-H22, 1100-H24, 1100-H26, 1100-H28, 1100-H32, 1100-H34, 1100-H36, 1100-H38.

INDUSTRY APPLICATIONS

Electrical conductors, transformer windings, HVAC insulation, food-grade processing equipment, chemical tanks, reflective lighting panels, architectural interiors, heat exchanger fins, nameplates, cookware, packaging foils.

BUYER KEYWORDS

1100 round bar supplier, 1100 round bar dealer, 1100 round bar distributor, 1100 round bar importer, buy 1100 round bar, 1100 round bar price per kg.

LOCATION KEYWORDS

1100 round bar Mumbai, 1100 round bar Pune, 1100 round bar Delhi, 1100 round bar Chennai, 1100 round bar Bengaluru, 1100 round bar Hyderabad, 1100 round bar Ahmedabad, 1100 round bar Kolkata, 1100 round bar Dubai, 1100 round bar Abu Dhabi, 1100 round bar Sharjah, 1100 round bar Doha, 1100 round bar Muscat, 1100 round bar Riyadh, 1100 round bar Jeddah, 1100 round bar Kuwait City, 1100 round bar New York, 1100 round bar Los Angeles, 1100 round bar Houston.

Aluminium 1100 Round Bar Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.
Aluminium 1100	A91100	3.0275

Aluminium 1100 Round Bars Chemical Composition

Alloy	Al	Si	Fe	Cu	Mn	Mg	Zn	Ti	Other Each	Others Total
1100	99.70 min	0.20 max	0.25 max	0.04 max	0.03 max	0.03 max	0.04 max	0.03 max	0.03 max	0.15 max

Aluminium 1100 Round Bars Mechanical Properties

Material	Diameter (mm)	Tensile Strength (N/mm²)	Yield Strength (N/mm²)	Elongation % (min)
Aluminium 1100 (O)	< 25	90 – 110	35 min	30
	25 – 100	85 – 105	30 min	28
	100 – 200	80 – 100	28 min	25
